Autel Alpha + L35T Gimbal Camera: smart flight and powerful multi-sensor vision

The Autel Alpha is a professional-grade drone engineered for demanding enterprise operations, combining long-range transmission, multi-sensor imaging, and advanced autonomy in a rugged IP55 airframe.

Designed for industrial inspections, public safety missions, and environmental monitoring, it delivers stable flight performance, secure communications, and dependable endurance in challenging environments.

Paired with the L35T payload, the Alpha provides high-resolution wide imaging, powerful optical zoom, dual thermal modules, and precision ranging to support data-driven decision-making across complex field scenarios.

Core features and sensor capabilities

48 MP wide camera delivers detailed landscapes for mapping and inspection
Zoom camera provides 35× optical and 560× digital magnification
Dual thermal modules output 640 × 512 imaging for heat assessment
Temperature detection range supports –20°C to +550°C environments
Wide thermal uses 42° FOV; tele thermal uses 12.3° FOV
Laser rangefinder supports accurate coordinate and distance acquisition
LiDAR capability enhances elevation and structure mapping workflows
Supports JPG, DNG, MP4, and MOV media formats
Wide camera supports ISO up to 256000 in Night Scene mode
Zoom camera supports ISO up to 320000 for low-light missions

Autel Alpha with L35T Gimbal Camera

Multi-sensor payload intelligence for demanding enterprise missions

The Autel Alpha features a reliable 20-kilometer transmission range and a durable airframe designed to support extended, uninterrupted missions.

Its 40-minute maximum flight time and 38-minute hover capability demonstrate strong energy efficiency, while its IP55 rating ensures dependable performance in rain, dust, and harsh outdoor environments.

The aircraft’s integration of GPS, GLONASS, BeiDou, and Galileo supports precise navigation, and its anti-interference architecture protects the flight link against RFI, EMI, and GPS spoofing.

Together with 360-degree obstacle detection and multi-band connectivity, the Alpha provides robust situational awareness for industrial, security, and public safety operations.

Advanced imaging performance with next-generation L35T payload

The Autel L35T gimbal camera integrates multiple high-performance sensors developed for platforms such as the Autel Alpha and Autel Titan.

Its wide-angle camera captures expansive landscapes with clarity using a 48 MP 1/2" CMOS sensor and f/2.8 aperture. A powerful zoom module provides 1×–35× optical and up to 560× digital magnification.

The dual thermal imaging modules (Wide and Tele) use uncooled VOx microbolometers and deliver 640 × 512 resolution at 25 fps, detecting temperatures from –20°C to +550°C.

Additional support from a laser rangefinder and onboard LiDAR enhances measurement accuracy and situational awareness across varied mission environments.

Connectivity, command, and system integration

20 km transmission range provides stable long-distance control
AES-256 encryption protects all command and video channels
Multi-band connection supports 2.4 / 5.2 / 5.8 GHz operation
GNSS integration includes GPS, GLONASS, BeiDou, and Galileo
Anti-interference system counters RFI, EMI, and GPS spoofing
RTK dual-antenna system offers millimeter-level flight positioning
Modular payload design supports evolving enterprise mission needs
Compatible with DG-L35T multi-sensor payload architecture

Advanced L35T Camera Payload

The Autel L35T Gimbal Camera integrates multiple high-performance sensors, designed specifically for next-generation UAV platforms such as the Autel Alpha and Autel Titan.

Equipped with LiDAR capabilities, a powerful 35x optical zoom, and advanced thermal imaging, the L35T represents a comprehensive aerial imaging solution.

Wide-Angle Camera

Sensor and Lens: The wide-angle camera utilizes a 1/2" CMOS sensor with 48 megapixels, enabling the capture of detailed, high-resolution landscapes. It includes a 24mm equivalent focal length and an f/2.8 aperture, supporting wide field imaging with precision and clarity.

ISO Range and Media Formats: Designed for adaptability in diverse lighting conditions, this camera supports ISO levels up to 6400 for still images and 64000 for video, with an expanded range of ISO 256000 in Night Scene mode. Media is recorded in JPG and DNG for photos, and MP4/MOV for video, with a maximum video resolution of 3840×2160 at 30 fps.

Zoom Camera

Sensor and Zoom Capabilities: The zoom camera features a 1/1.8" CMOS sensor and supports an optical zoom from 1x to 35x, with digital zoom extending up to 560x—ideal for capturing distant targets with exceptional clarity.

ISO Range and Aperture Control: It offers a dynamic ISO range, including an enhanced Night Scene capability reaching ISO 320000. The variable aperture ensures optimal exposure and image quality in varying lighting conditions.

Thermal Imaging Cameras

Thermal Sensors and Optics: Two thermal imaging modules—Wide and Tele—are integrated into the L35T payload. Each employs Uncooled VOx Microbolometers to capture precise thermal data. They feature differing fields of view (42° for Wide, 12.3° for Tele) and focal lengths (13mm and 45mm, respectively), addressing varied operational requirements.

Resolution and Temperature Range: Both thermal cameras deliver a resolution of 640×512 at 25 fps and can detect temperatures ranging from -20℃ to +550℃. This makes them highly suitable for industrial assessments, environmental monitoring, and emergency response applications.

Comprehensive Safety Systems

Engineered with advanced navigational precision, the Autel Alpha incorporates GNSS technologies including GPS, GLONASS, BeiDou, and Galileo.

It is fortified with electronic countermeasures such as resistance to RFI/EMI and GPS spoofing, ensuring consistent performance in high-interference environments.

360-degree obstacle detection further enhances flight safety, while support for multi-band operation (2.4/5.2/5.8 GHz) allows for flexible communication strategies.

Autel Alpha with L35T Gimbal Camera

Operational Versatility and Performance

Autonomy in flight empowers complex operations with reduced manual intervention. The drone's modular payload compatibility increases its utility across various mission profiles.

Security is reinforced through AES-256 encryption, protecting data transmission from unauthorized access and cyber threats.

With a top horizontal velocity of 24m/s and wind resistance up to 15m/s, the Autel Alpha remains stable and effective under diverse field conditions.

Its operational temperature range of -20℃ to +50℃ further affirms its reliability in extreme environments.

Enterprise Use Cases

Combining advanced imaging, flight reliability, and durable construction, the Autel Alpha emerges as a transformative asset for enterprise applications across sectors.

Agriculture: The drone facilitates smart agriculture by utilizing high-resolution and thermal sensors to monitor crop vitality, pest activity, and soil hydration with precision. Its capabilities enable informed decision-making, enhancing productivity and resource efficiency. Livestock monitoring also benefits from the drone's expansive coverage and real-time visuals.

Construction: By integrating with mapping platforms, the Alpha generates accurate 2D and 3D models, improving construction planning and site management. Its imaging systems support thorough structural inspections while reducing operational risks, enhancing safety and compliance on construction sites.

Public Safety and Search and Rescue: In security and emergency scenarios, the UAV’s extended imaging capabilities and autonomous features enable comprehensive surveillance and expedited location of individuals in distress. These capabilities contribute significantly to improving the speed, safety, and effectiveness of public safety operations.

Built for professional operations

The Autel Alpha is engineered for industrial-grade performance, combining robust environmental resistance, multi-band communication, and advanced autonomy to support high-stakes missions.

Its full 360-degree sensing and anti-interference protections maintain operational continuity in dense, hazardous environments.

The L35T payload adds comprehensive optical, thermal, ranging, and LiDAR capabilities, enabling operators to collect high-value data under variable lighting and environmental conditions.

This combination provides a precise, reliable platform optimized for continuous professional deployment. Purchase from DSLRPros today and equip your team with a proven, enterprise-ready aerial platform built for demanding field operations.

Shop / Drones & Parts / Autel Alpha

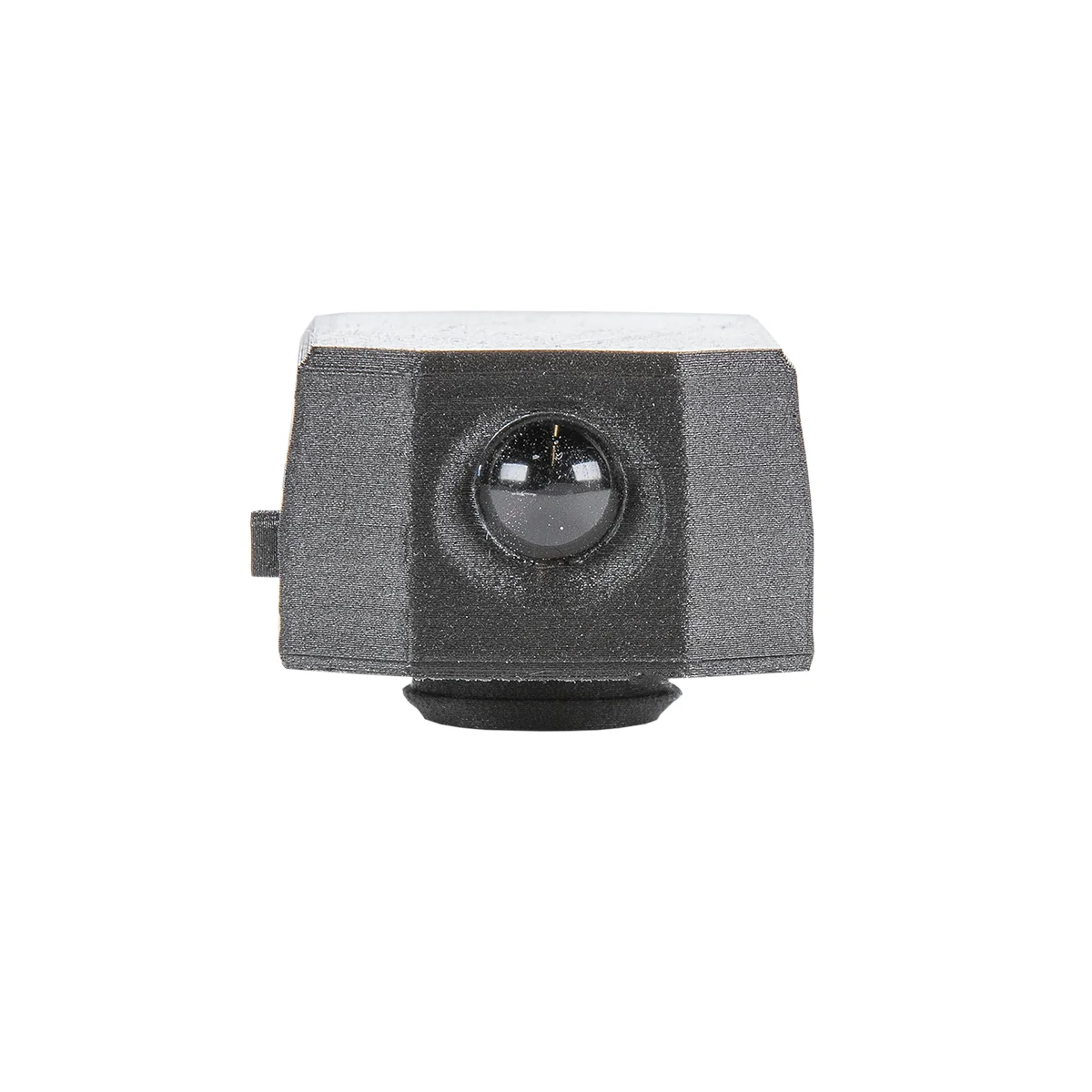

FoxFury D10 Drone Light

Autel Alpha with L35T Gimbal Camera

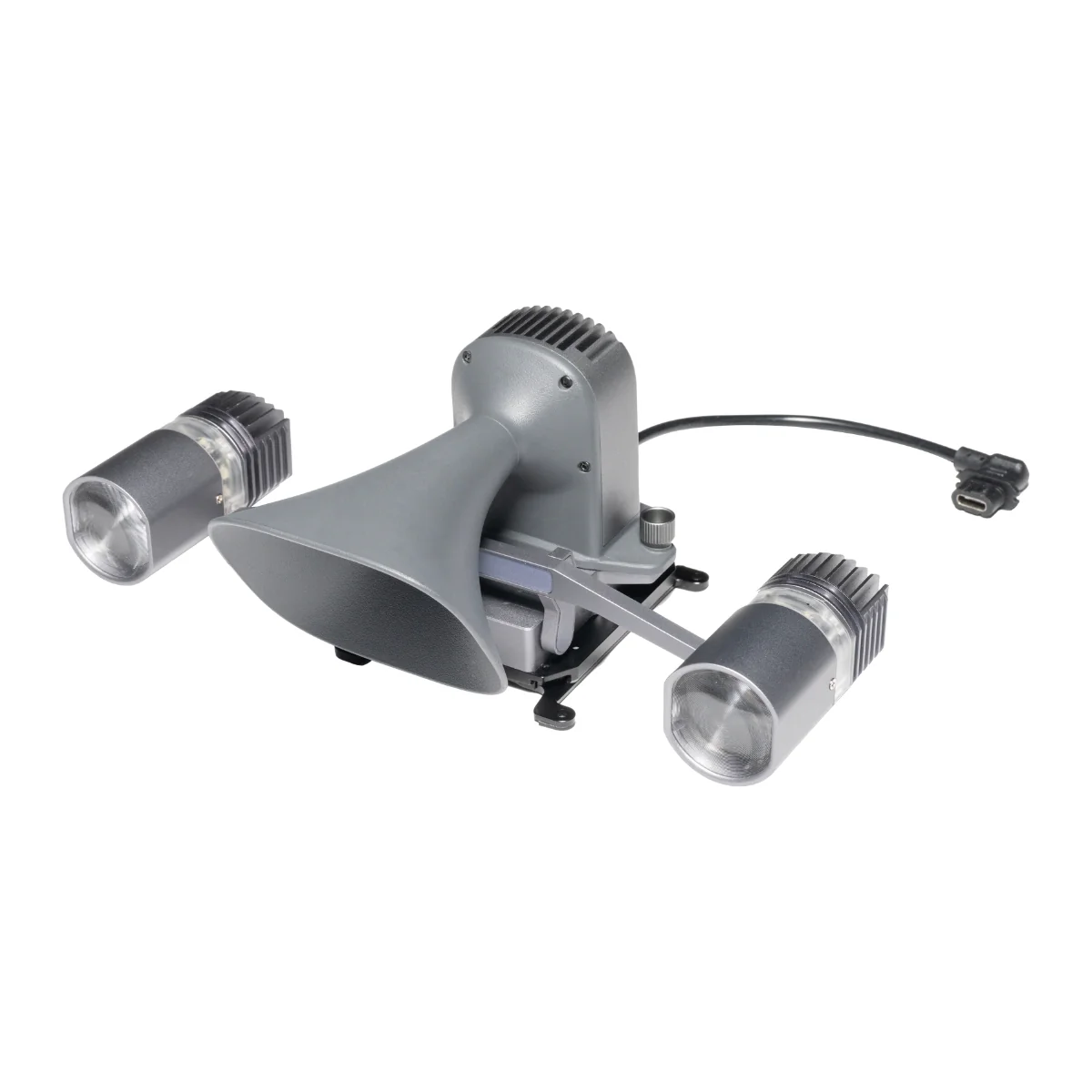

Autel Alpha DT60S+DH1E Loudspeaker & Spotlight

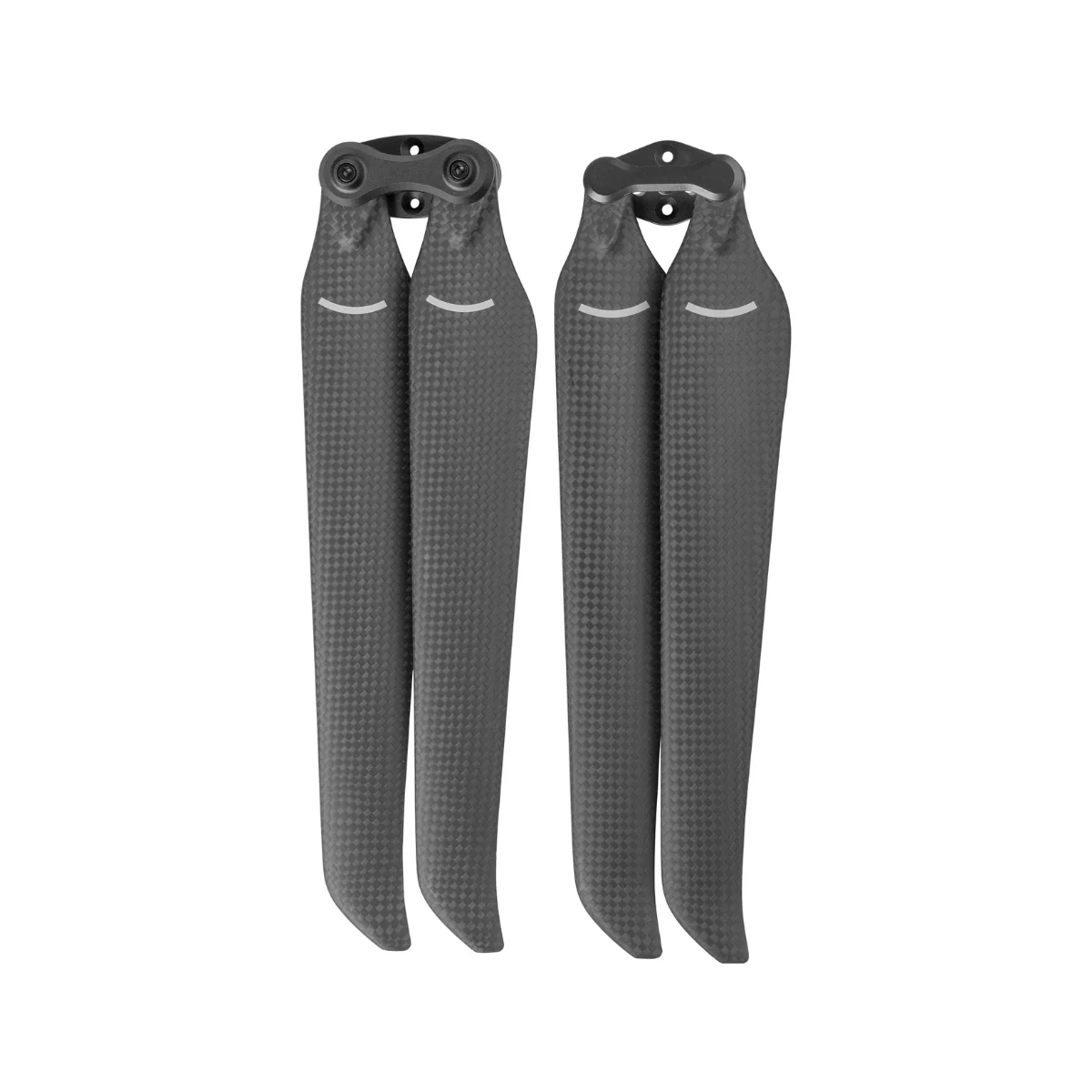

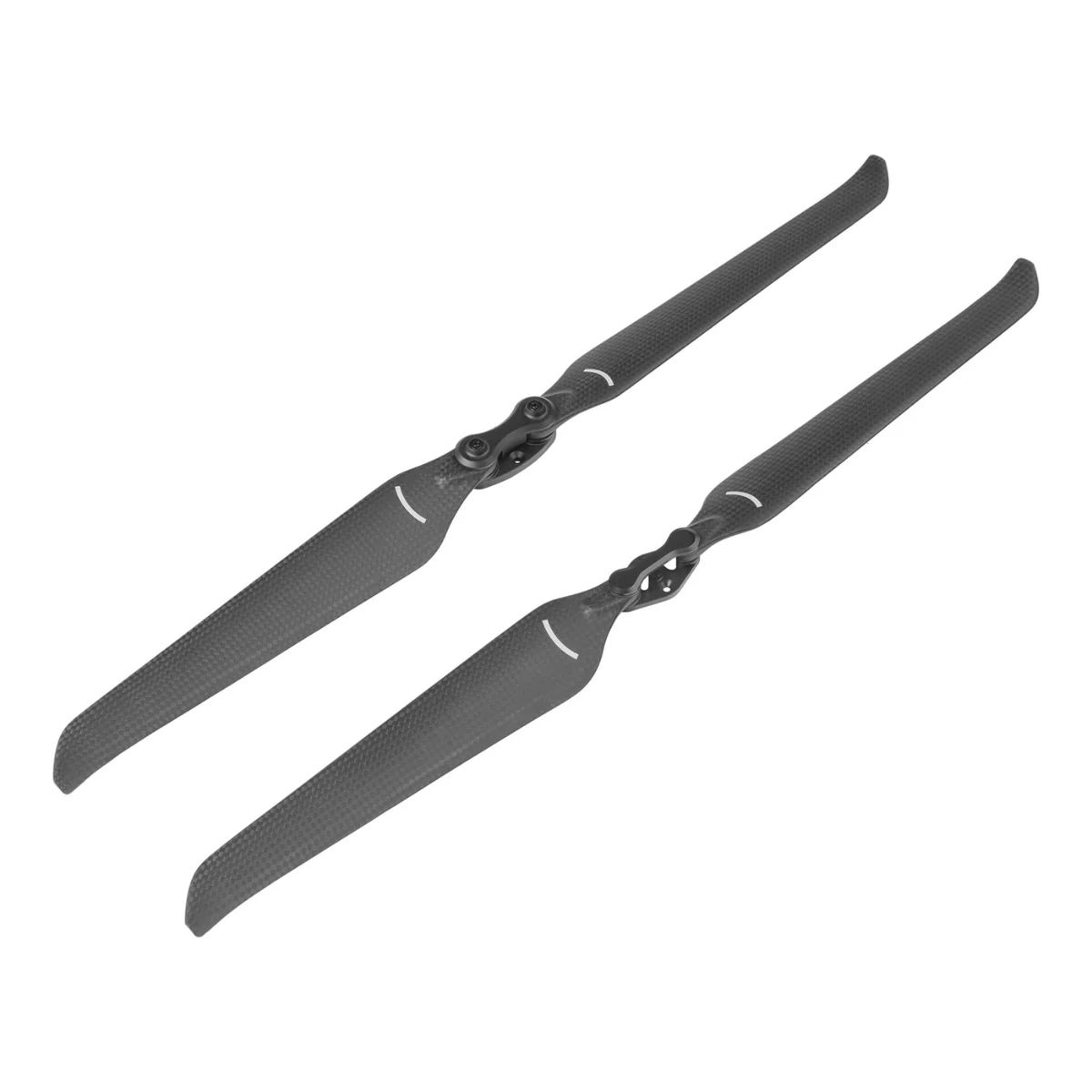

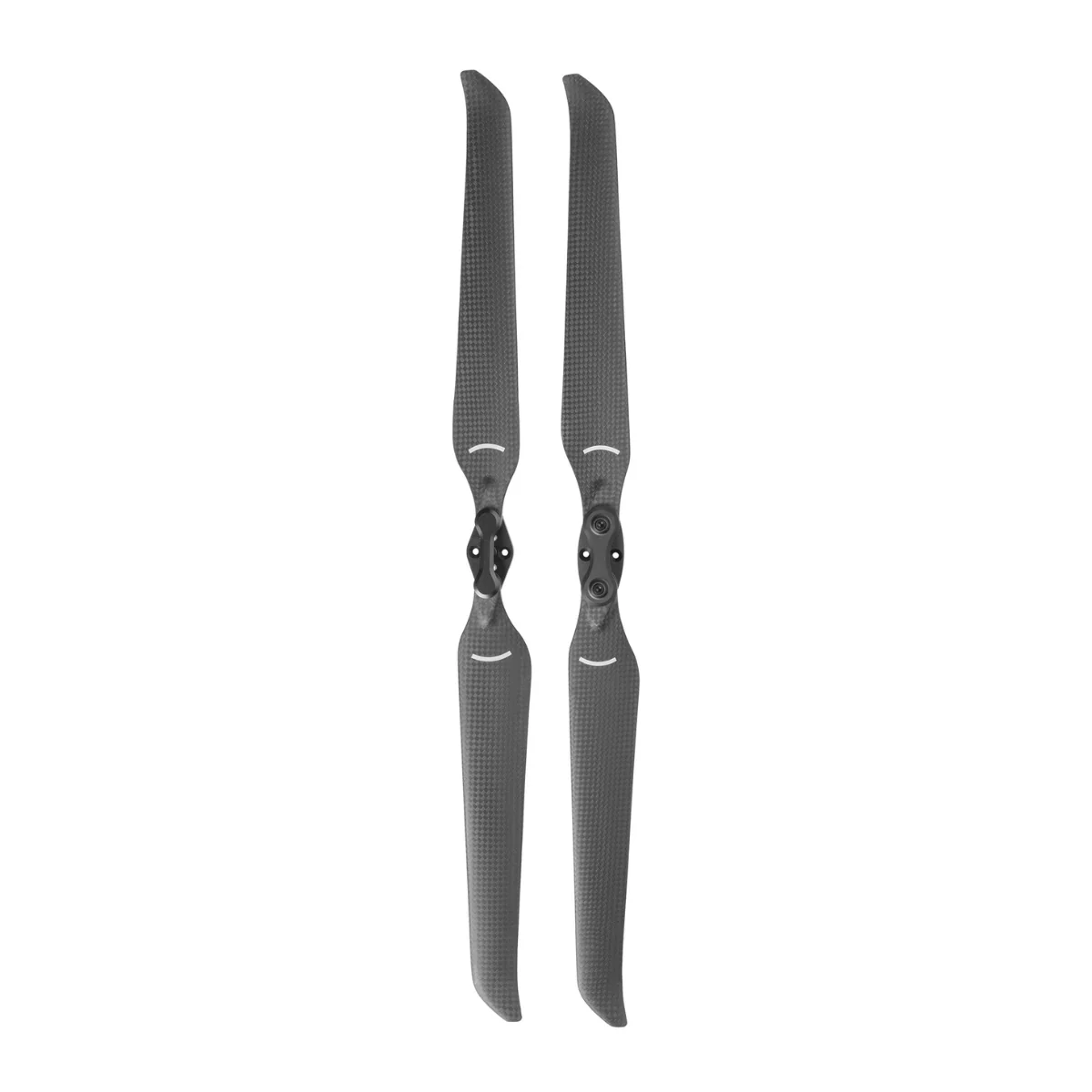

Autel Alpha Propeller (Pair) CCW Rear Right

Autel Alpha Propeller (Pair) CCW Front Right

Autel Alpha Propeller (Pair) CCW Rear Left

Autel Alpha Propeller (Pair) CCW Front Left

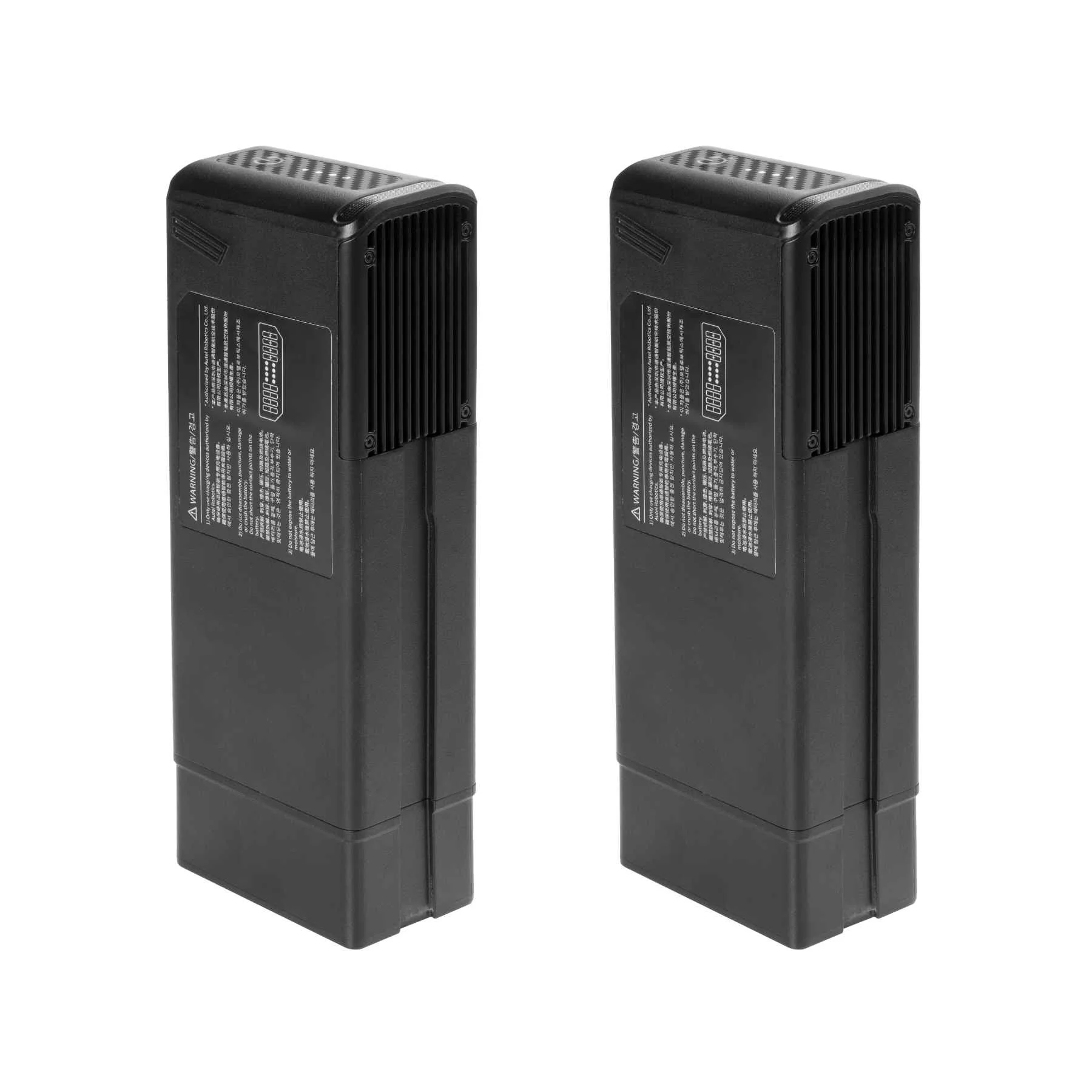

Autel Alpha Smart Flight Battery (2-Pack)

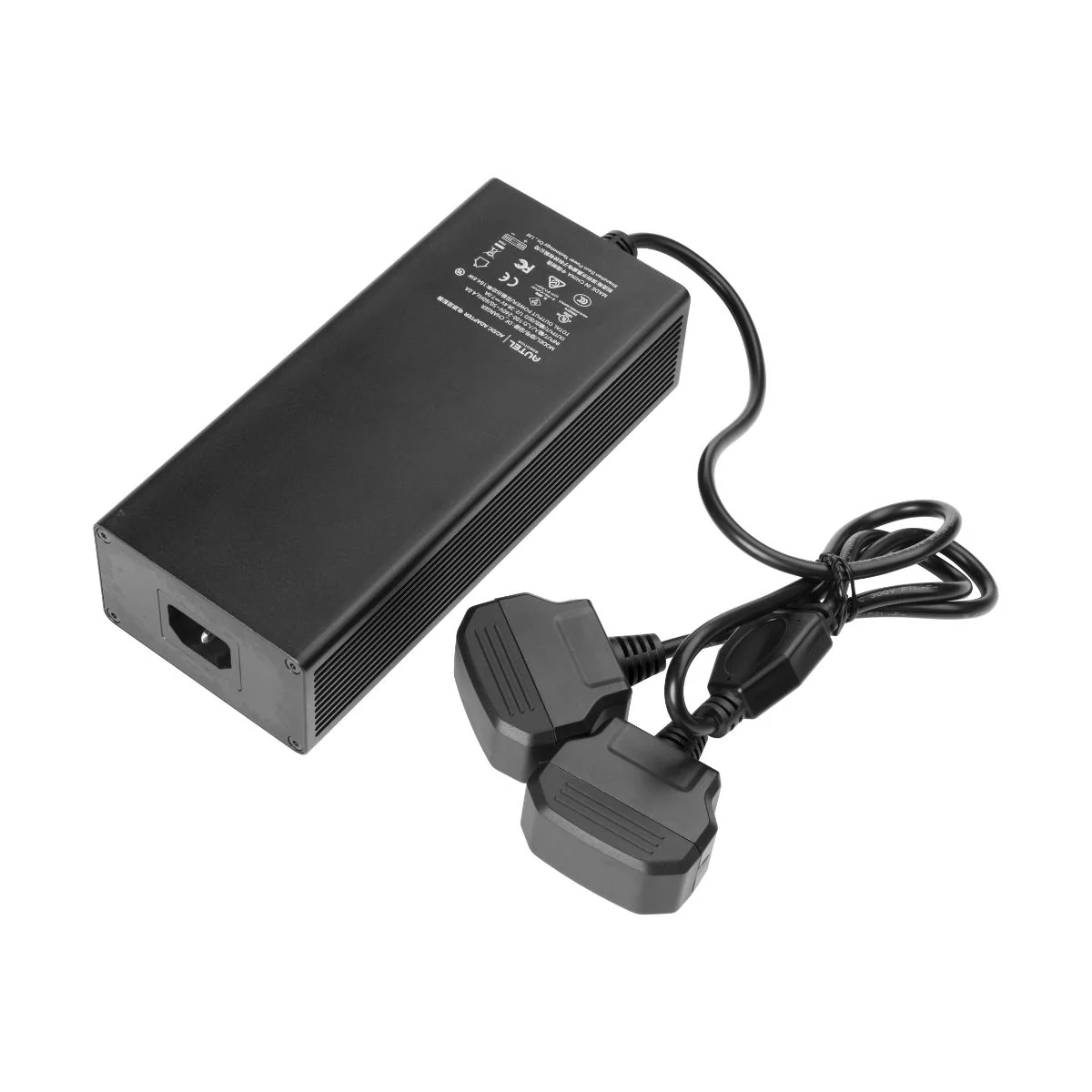

Autel Alpha Charger
